MALE PITCH mm 1,27 - 2,00 -2,54

Material

  • Current Rating: 1.0 AMP
  • Contact Resistance: 10mΩ Max
  • Dielectric Strength: Min 1000 VRMS
  • Mechanical Life: Min 500 Cycles
  • Operation Temperature: -40°C to +105°C
  • Sleeve: Brass CuZn36Pb3(C36000)
  • Contact Plating: Au over Ni
  • Mating Pin: Ø0.38 to Ø0.50mm
  • Connecting Pin: Ø0.41mm
  • Insulator Material: PPS +30% G.F (UL94V-0)

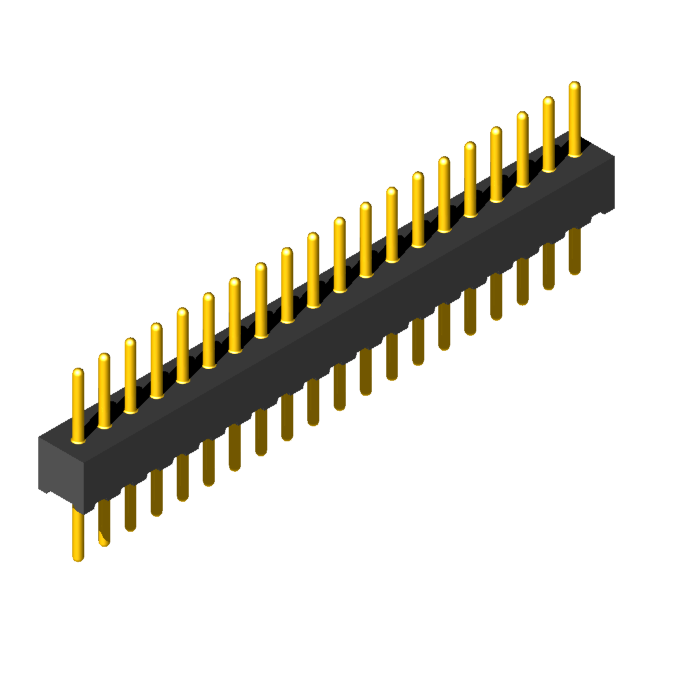

ZMB-1XXDX081FX

ZMB-1XXDX081FX

MACHINER HEADER - STRAIGHT - SINGLE ROW - THT - PIN - mm. ø0,41 - PITCH 1,27

Datasheets:
ZMB-1XXDXXXF ZMB-1XXDXXXF.pdf
ZMB-2XXDX081FX

ZMB-2XXDX081FX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,41 - PITCH 1,27

Datasheets:
ZMB-2XXDXXXF ZMB-2XXDXXXF.pdf
ZMB-1XXRX030FX

ZMB-1XXRX030FX

MACHINER HEADER - RIGHT ANGLE - SINGLE ROW - THT - PIN - mm. ø0,41 - PITCH 1,27

Datasheets:
ZMB-1XXRXXXF ZMB-1XXRXXXF.pdf
ZMB-1XXMX030FX

ZMB-1XXMX030FX

MACHINER HEADER - STRAIGHT - SINGLE ROW - SMT - PIN - mm. ø0,41 - PITCH 1,27

Datasheets:
ZMB-1XXMXXXF ZMB-1XXMXXXF.pdf
ZMB-1XXNX030FX

ZMB-1XXNX030FX

MACHINER HEADER - RIGHT ANGLE - SINGLE ROW - SMT - PIN - mm. ø0,41 - PITCH 1,27

Datasheets:
ZMB-1XXNXXXF ZMB-1XXNXXXF.pdf

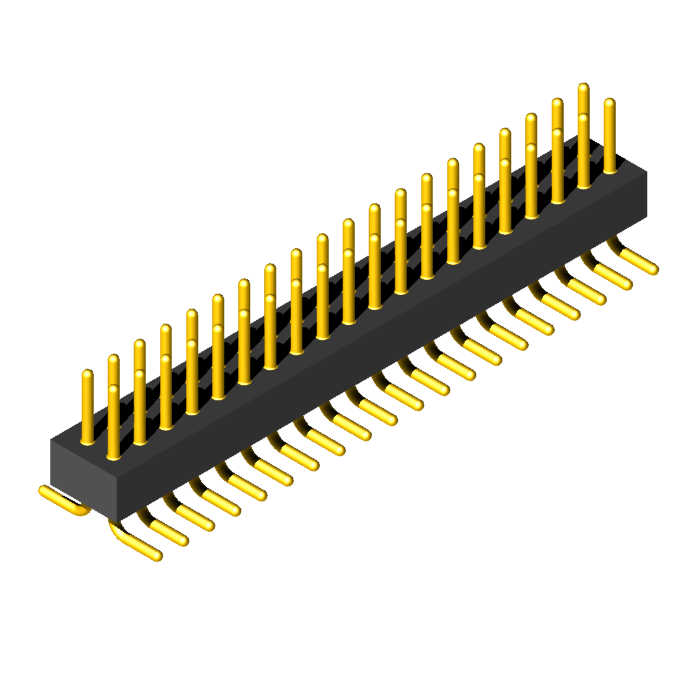

ZMB-2XXMX030FX

ZMB-2XXMX030FX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - SMT - PIN - mm. ø0,41 - PITCH 1,27

Datasheets:
ZMB-2XXMXXXF ZMB-2XXMXXXF.pdf
ZMA-1XXDX121AX

ZMA-1XXDX121AX

MACHINER HEADER - STRAIGHT - SINGLE ROW - THT - PIN - mm. ø0,48 - PITCH 2,00

Datasheets:
ZMA200-XXD ZMA200-XXD.pdf

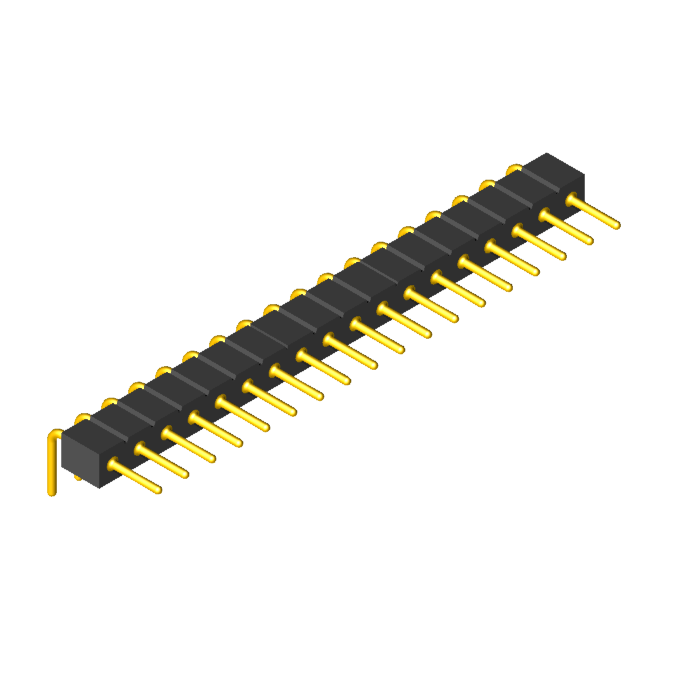

ZMA-1XXRX036AX

ZMA-1XXRX036AX

MACHINER HEADER  - RIGJT ANGLE - SINGLE ROW - THT - PIN - mm. ø0,47 -PITCH 2,00

Datasheets:
ZMA200-XXR ZMA200-XXR.pdf
ZM0-1XXDX100CX

ZM0-1XXDX100CX

MACHINER HEADER - STRAIGHT - SINGLE ROW - THT - PIN - mm. ø0,47 - PITCH 2,54

Datasheets:
ZM0-1XXD100XX ZM0-1XXD100XX.pdf
ZM0-2XXDX100CX

ZM0-2XXDX100CX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,47 -PITCH 2,54

Datasheets:
ZM0-2XXD100CX L---ZM0-2XXD100CX.pdf
ZM0-1XXDX095GX

ZM0-1XXDX095GX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,50 - PITCH 2,54

Datasheets:
ZM0-XXXD095GX ZM0-XXXD095GX.pdf

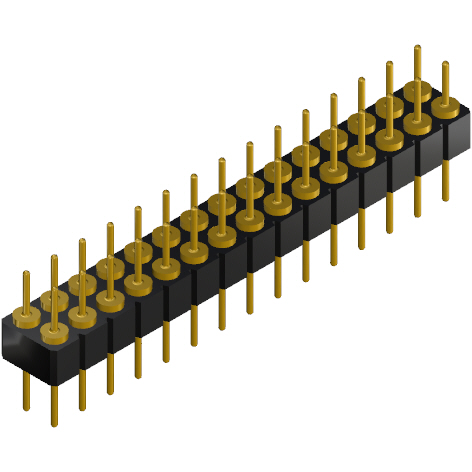

ZM0-2XXDX095GX

ZM0-2XXDX095GX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,50 - PITCH 2,54

Datasheets:
ZM0-XXXD095GX ZM0-XXXD095GX.pdf

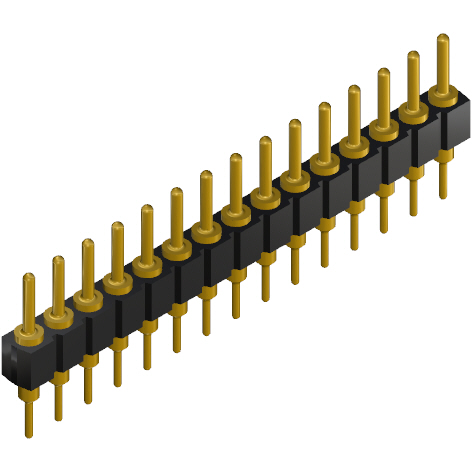

ZM0-1XXDX119DX

ZM0-1XXDX119DX

MACHINER HEADER - STRAIGHT - SINGLE ROW - THT - PIN - mm. ø0,60 - PITCH 2,54

Datasheets:
ZM0-1XXD119XX ZM0-1XXD119XX.pdf
ZM0-2XXDX119DX

ZM0-2XXDX119DX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,60 - PITCH 2,54

Datasheets:
ZM0-2XXD119DX H---ZM0-2XXD119DX.pdf

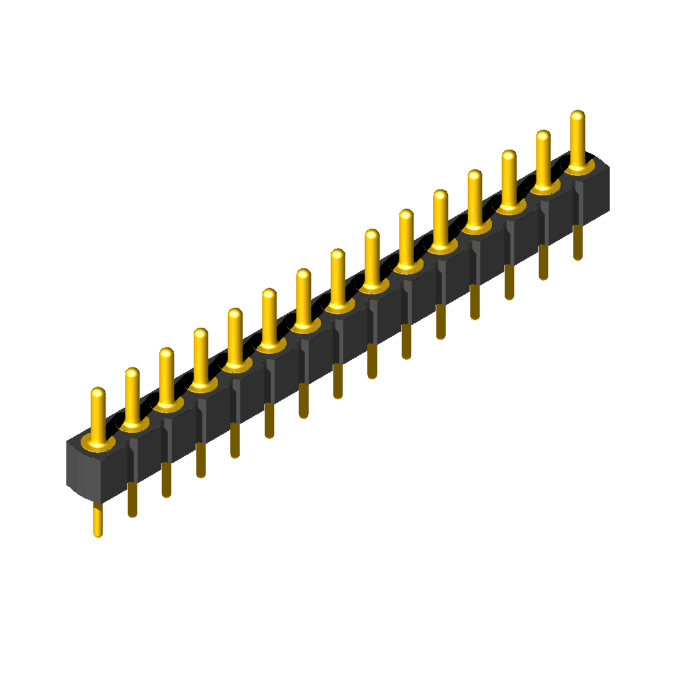

ZM0-1XXDX096BX

ZM0-1XXDX096BX

MACHINER HEADER - STRAIGHT - SINGLE ROW - THT - PIN - mm. ø0,76 - PITCH 2,54

Datasheets:
ZM0-XXXD096EX ZM0-XXXD096EX.pdf
ZM0-2XXDX096BX

ZM0-2XXDX096BX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,76 - PITCH 2,54

Datasheets:
ZM0-2XXD100CX L---ZM0-2XXD100CX.pdf
ZM0-1XXDX112BX

ZM0-1XXDX112BX

MACHINER HEADER - STRAIGHT - SINGLE ROW - THT - PIN - mm. ø0,76 - PITCH 2,54

Datasheets:
ZM0254-2XXDX112BX ZM0254-2XXDX112BX.pdf

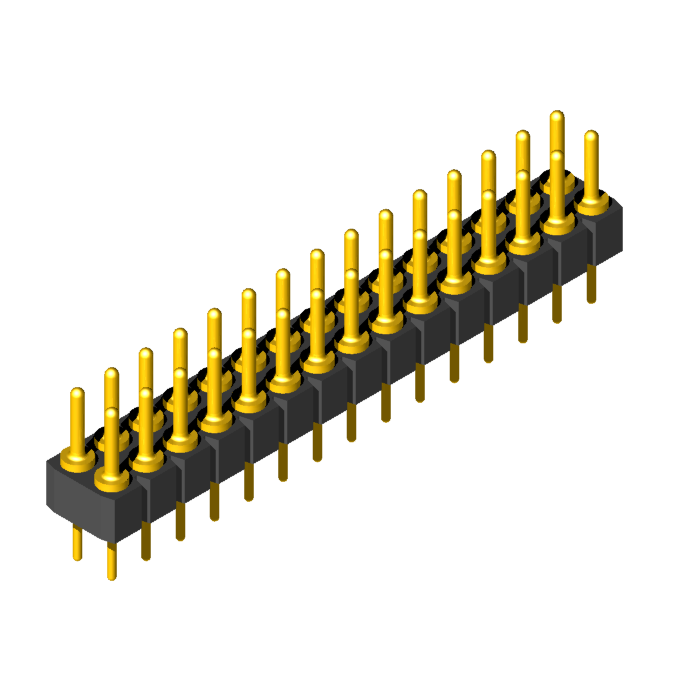

ZM0-2XXDX112BX

ZM0-2XXDX112BX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - THT - PIN - mm. ø0,76 - PITCH 2,54

Datasheets:
ZM0254-2XXDX112BX ZM0254-2XXDX112BX.pdf

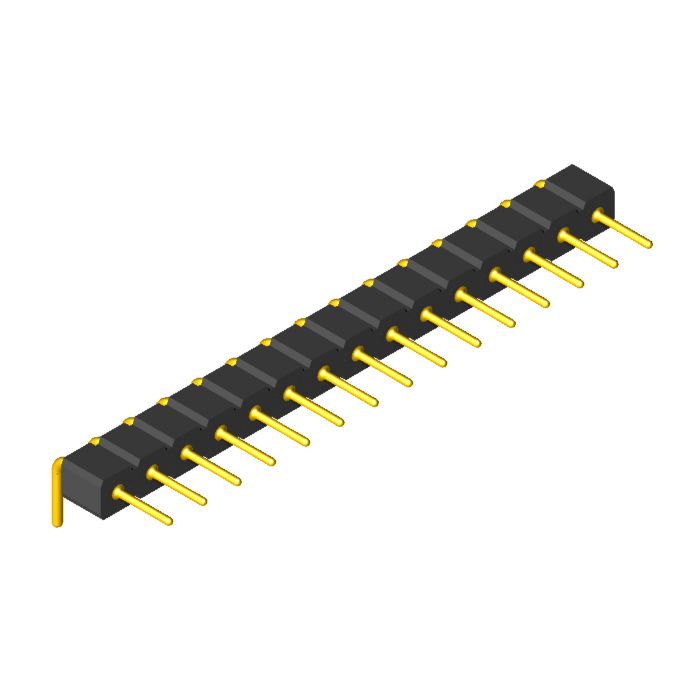

ZM0-1XXRX040AX

ZM0-1XXRX040AX

MACHINER HEADER - RIGHT ANGLE - SINGLE ROW - THT -  PIN - mm. ø0,50 -PITCH 2,54

Datasheets:
ZM0-1XXRYYYA ZM0-1XXRYYYA.pdf

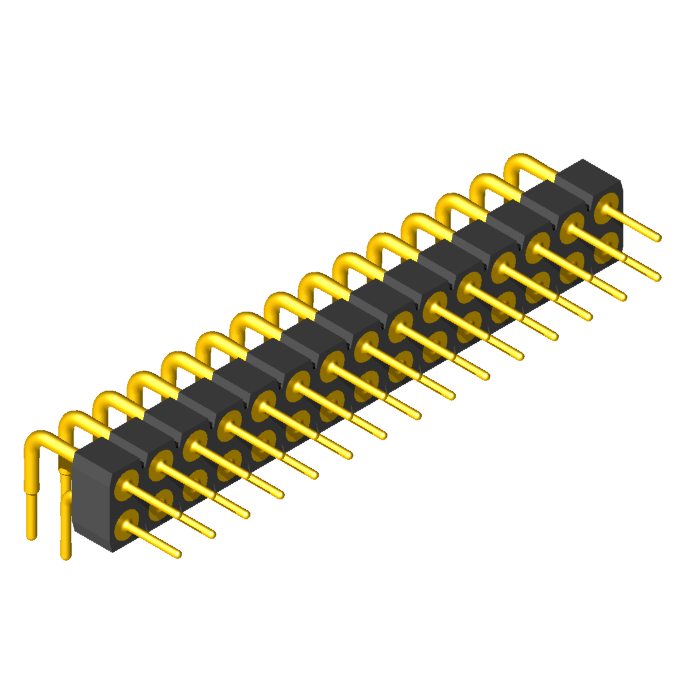

ZM0-2XXRX030AX

ZM0-2XXRX030AX

MACHINER HEADER - RIGHT ANGLE - DOUBLE ROW - THT - PIN - mm. ø0,50 - PITCH 2,54

Datasheets:
ZMD254-2XXR ZMD254-2XXR.pdf
ZM0-2XXRX050BX

ZM0-2XXRX050BX

MACHINER HEADER - RIGHT ANGLE - DOUBLE ROW - THT - PIN  mm. ø0,76 - PITCH 2,54

Datasheets:
ZMD254-2XXRX112BT ZMD254-2XXRX112BT.pdf
ZM0-2XXMX035GX

ZM0-2XXMX035GX

MACHINER HEADER - STRAIGHT - DOUBLE ROW - SMT PIN - mm. ø0,50 - PITCH 2,54

Datasheets:
ZMD254-XXM-1 ZMD254-XXM-1.pdf
