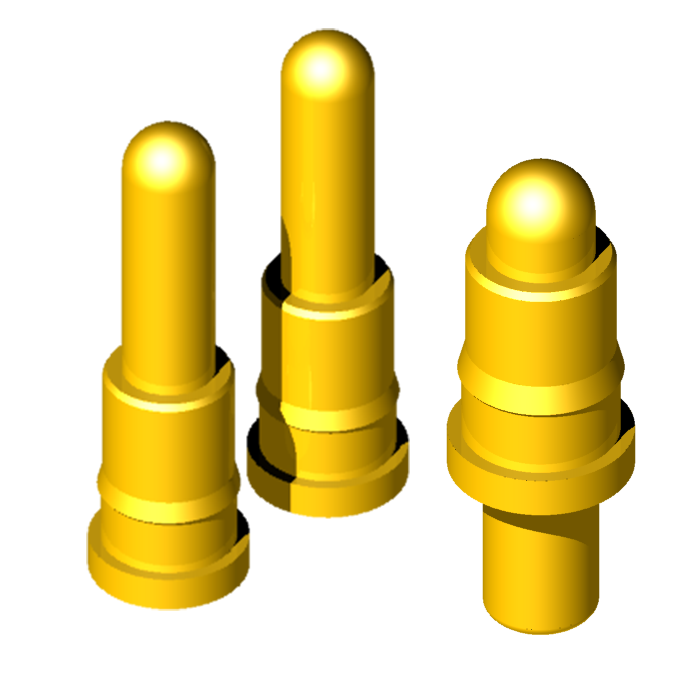

POGO PIN - SPRING CONTACT
Material
- CBody: brass
- Spring: stainless steel wire
- Insulator:PA66 high temp UL94-V-0
- Plating: min. 0,1u GOLD over 1,4 min Nickel
- Durability:10000 cycle min.
- Rated Voltage: less tan 36V DC
- Rated current: 2.0 Amp (single pin)
- Contact impedance: 30m Ohm Max
- Working temp: -40°C +80°C
- Ball structure to proctet spring from high current
- Thru-hole tail for secure soldering
- Solder-cup tail for wire attachment
- The force is the average of forces obtained when plunger goes downwards and upwards
