BOARD TO BOARD

Material

  • Contact: Phosphor Bronze Gold - Plated
  • Housing: PA46

Electrical

  • Electrical Rating: AC/DC 50V 0.5A
  • Insulation Resistance: 500 MΩ
  • Withstang Volt: 200V AC/minute
  • Operating Temperature: -40°C to +105°C
STS100-XXMP33F1R

STS100-XXMP33F1R

1,00mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STS100-XXXP33X STS100-XXXP33X.pdf
STS100-XXMSF331R

STS100-XXMSF331R

1,00mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STS100-XXXS33X STS100-XXXS33X.pdf
STM080-XXMSFYYY1R

STM080-XXMSFYYY1R

0,80mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STM080-XXMSFYYY1R REV01 STM080-XXMSFYYY1R_REV01.pdf

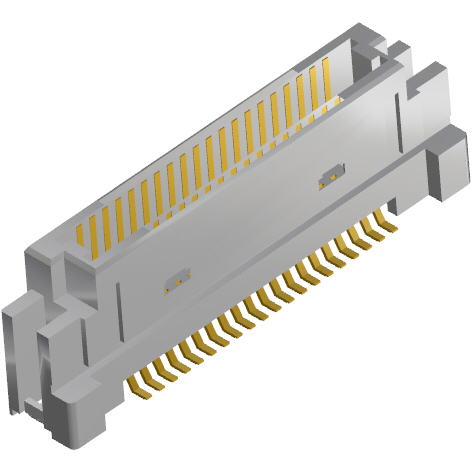

STM080-XXMPFYYY1R

STM080-XXMPFYYY1R

0,80mm PITCH - BOARD TO BOARD CONNECTOR - MALE - SMT

Datasheets:
STM080-XXMPFYYY1R REV01 STM080-XXMPFYYY1R_REV01.pdf
STS080-050MSF0331R

STS080-050MSF0331R

0,80mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STS080-XXXMS01 STS080-XXXMS01.pdf

STS080-050MPF651R

0,80mm PITCH - BOARD TO BOARD CONNECTOR - MALE - SMT

Datasheets:
STS080-XXXMP01 STS080-XXXMP01.pdf
STW080-XXMSSYYY1R

STW080-XXMSSYYY1R

0,80mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STW080-XXMSXXX STW080-XXMSXXX.pdf
STW080-XXMPS3551R

STW080-XXMPS3551R

0,80mm PITCH - BOARD TO BOARD CONNECTOR - MALE - SMT

Datasheets:
STW080-XXMPXXX01 STW080-XXMPXXX01.pdf
STS060-XXXMSG022PR

STS060-XXXMSG022PR

0,60mm PITCH - BOARD TO BOARD CONNECTOR - MALE - SMT

Datasheets:
STS060-XXXM STS060-XXXM.pdf
STS060-XXXFPG023PR

STS060-XXXFPG023PR

0,60mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STS060-XXXF STS060-XXXF.pdf STS060-XXXM STS060-XXXM.pdf

STS0635-XXXMX050

0,635mm PITCH - BOARD TO BOARD CONNECTOR - PLUG - SMT   -  20 TO 200 CIRCUIT

STS0635-XXXFX10

0,635mm PITCH - BOARD TO BOARD CONNECTOR - SOCKET - SMT   -  20 TO 200 CIRCUIT

STW050-XXMSGYYY1R

STW050-XXMSGYYY1R

0,50mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STW050-XXMSX270 STW050-XXMSX270.pdf STW050-XXMSXXX STW050-XXMSXXX.pdf
STW050-XXMPYYY1R

STW050-XXMPYYY1R

0,50mm PITCH - BOARD TO BOARD CONNECTOR - MALE - SMT

Datasheets:
STW050-XXMPX270xx STW050-XXMPX270xx.pdf STW050-XXMPXXX01 STW050-XXMPXXX01.pdf
STS050-XXXFSGYYYPR

STS050-XXXFSGYYYPR

0,50mm PITCH - BOARD TO BOARD CONNECTOR - FEMALE - SMT

Datasheets:
STS050-F STS050-F.PDF
STS050-XXXMSGYYYPR

STS050-XXXMSGYYYPR

0,50mm PITCH - BOARD TO BOARD CONNECTOR - MALE - SMT

Datasheets:
STS050-M STS050-M.PDF
