IEEE 1394

Material

  • Housing: Thermoplastic, UL94V-0
  • Contact: Copper Alloy
  • Shell: Copper Alloy
  • Pin Plated: Gold 3u” over 50u” nickel

Electrical

  • Voltage Current Rating: 1.5AMP.40V AC
  • Insulation Resistnce: 500MΩ Min
  • Contact Resistance: 50mΩ Max
  • Dielectric Withstanding Voltage: 500V AC
  • Temperature Range: -20ºC ~+85ºC

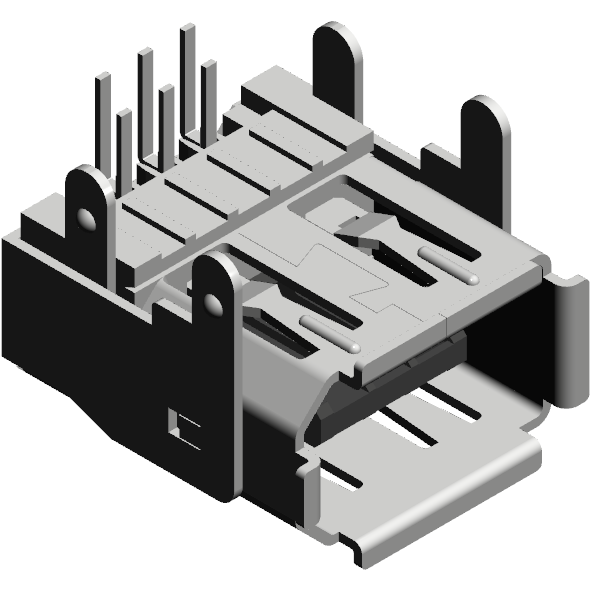

EC1-13946FCB

EC1-13946FCB

IEEE-1394 - RECEPTABLE CONNECTOR - THT - RIGHT ANGLE - 6 PIN

Datasheets:
EC1-13946FCB EC1-13946FCB.pdf

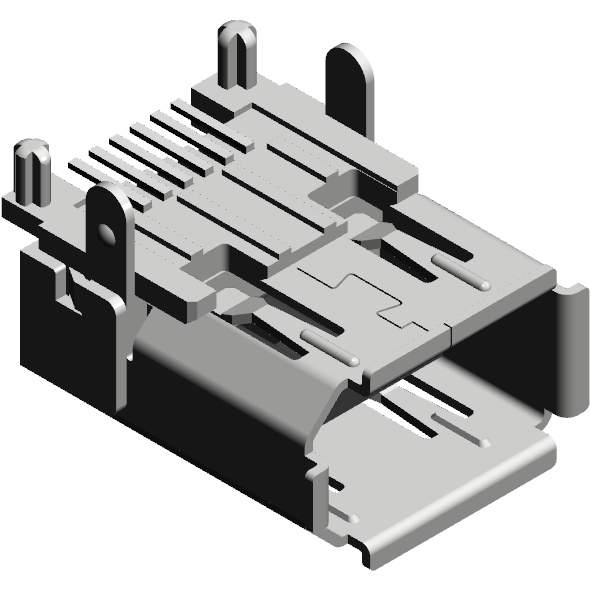

EC1-13946FBB

EC1-13946FBB

IEEE-1394 - RECEPTABLE CONNECTOR - SMT - RIGHT ANGLE - 6 PIN

Datasheets:
EC1-13946FBB EC1-13946FBB.pdf

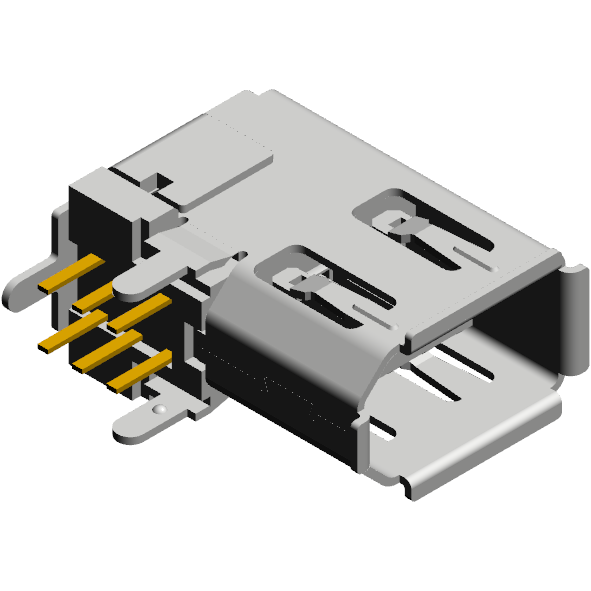

EC1-13946FAB

EC1-13946FAB

IEEE-1394 - RECEPTABLE CONNECTOR - THT - RIGHT ANGLE -64 PIN

Datasheets:
EC1-13946FAB EC1-13946FAB.pdf
EC1-13946FDB

EC1-13946FDB

IEEE-1394 - PLUG  CONNECTOR - CABLE SOLDER  - STRAIGHT - 6 PIN

Datasheets:
EC1-13944FBB EC1-13944FBB.pdf

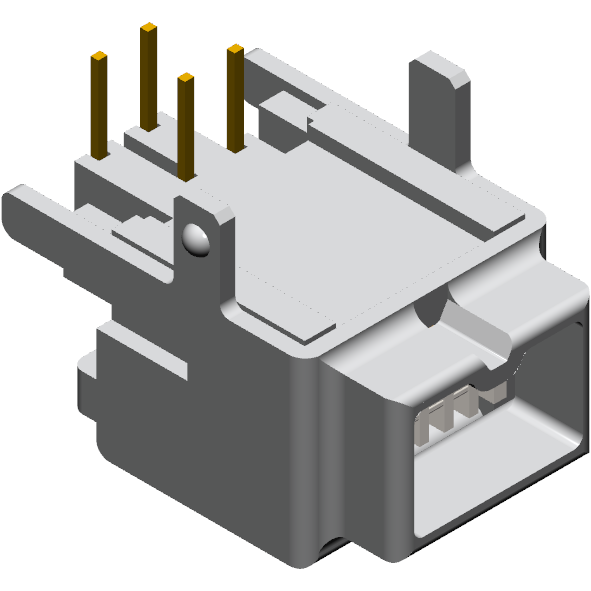

EC1-13944FCB

EC1-13944FCB

IEEE-1394 - RECEPTABLE CONNECTOR - THT - RIGHT ANGLE - 4 PIN

Datasheets:
EC1-13944FCB EC1-13944FCB.pdf
EC1-13944FBB

EC1-13944FBB

IEEE-1394 - RECEPTABLE CONNECTOR - SMT - RIGHT ANGLE - 4PIN

Datasheets:
EC1-13944FBB EC1-13944FBB.pdf

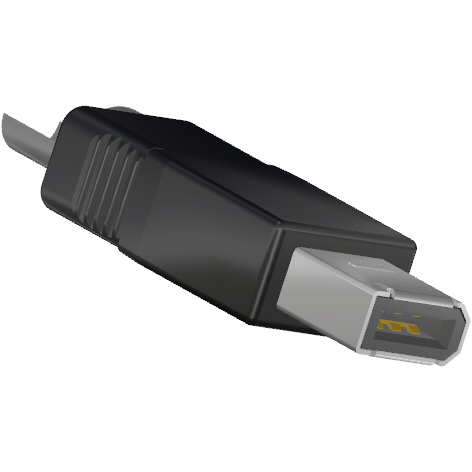

EC1-13944FEB

EC1-13944FEB

IEEE-1394 - PLUG CONNECTOR - SOLDER CABLE - STRAIGHT - 4 PIN

Datasheets:
EC1-13944FEB EC1-13944FEB.pdf
