IC-SOCKETS

Material

  • Insulator : Black Glass filled polyester PBT-GF30-FR
  • Flammability : UL94V-0
  • Sleeve : Brass
  • Contact Clip (4/6 finger) : Beryllium copper (C17200)
  • Accepted Pin : Ø 0.40 to 0.56 mm
  • Forces : (polished steel gauge Ø 0.43mm)
  • Insertion : 2 N typ
  • Withdrawal : 1 N typ
  • Mechanical life : min100 cycles
  • Rated Current : 1A
  • Contact Resistance : Max 10MΩ
  • Dielectric Resistance : 1000 MΩ Min
  • Operation Temperature : - 40 °C to + 105 °C

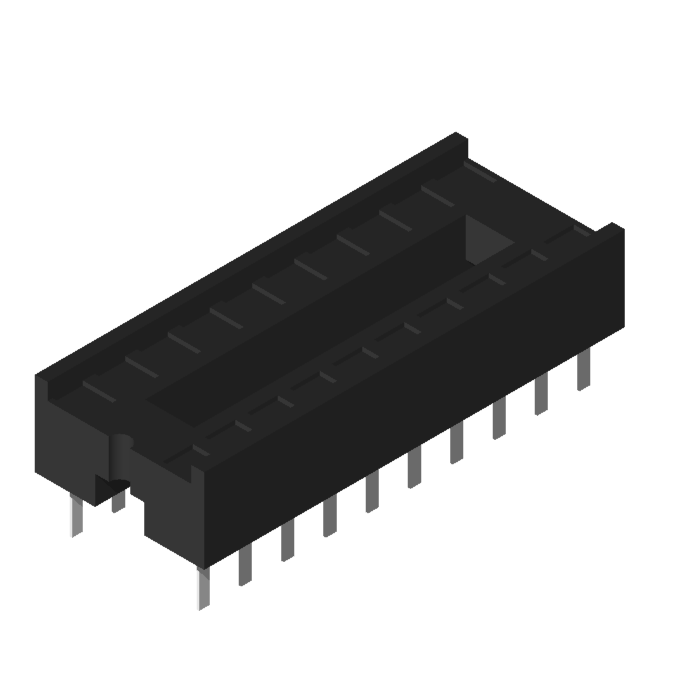

ZSX-XXTT

ZSX-XXTT

IC-SOCKETS - DUAL LINE - DUAL SPRING PIN -PITCH 2,54 - THT

Datasheets:
ZSX-XXTT ZSX-XXTT.pdf

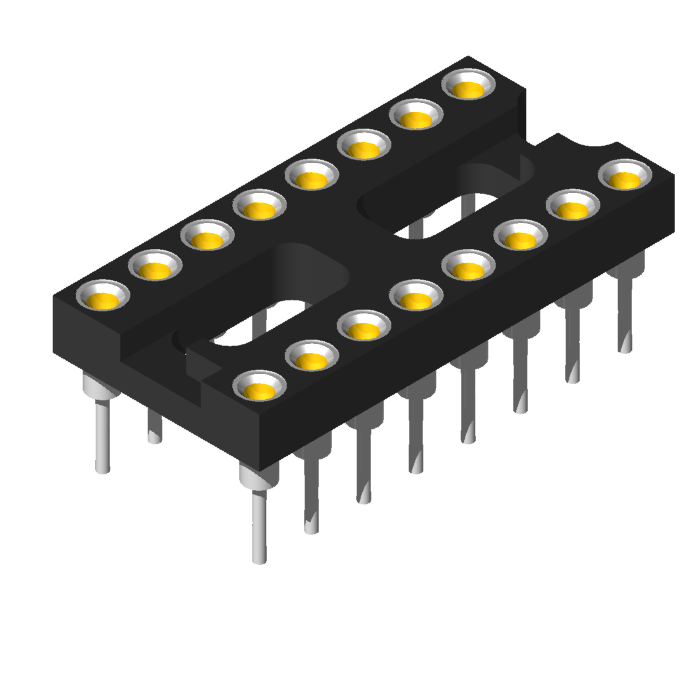

ZHX-XXFT

ZHX-XXFT

IC-SOCKETS - DUAL LINE - MACHINE PIN -PITCH 2,54 - THT

Datasheets:
ZHX-XXFT ZHX-XXFT.pdf ZHX254-XXDOD ZHX254-XXDOD.pdf

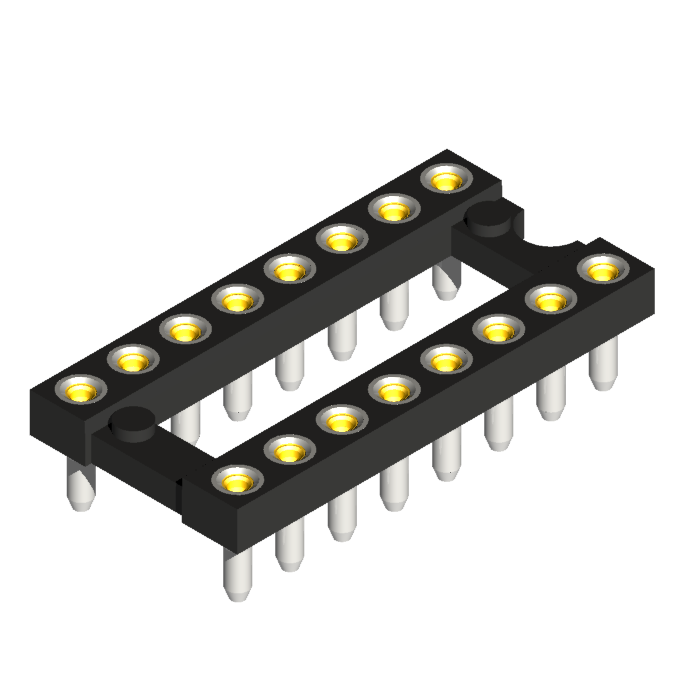

ZHX-XXDXXR

ZHX-XXDXXR

IC-SOCKETS - DUAL LINE - MACHINE PIN -PITCH 2,54 - THT - LOW PROFILE

Datasheets:
ZHX254-XXDR-1 ZHX254-XXDR-1.pdf

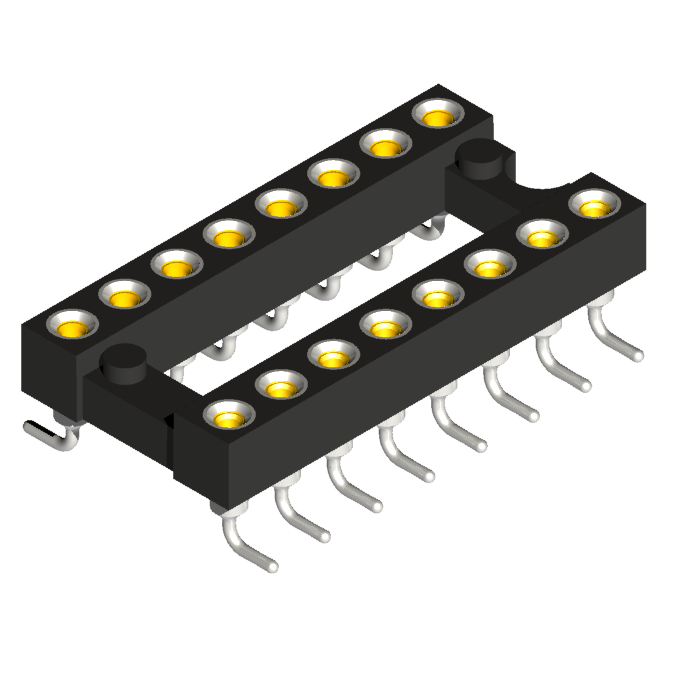

ZHX-XXM

ZHX-XXM

IC-SOCKETS - DUAL LINE - MACHINE PIN -PITCH 2,54 - SMT

Datasheets:
ZHX254-XXM ZHX254-XXM.pdf

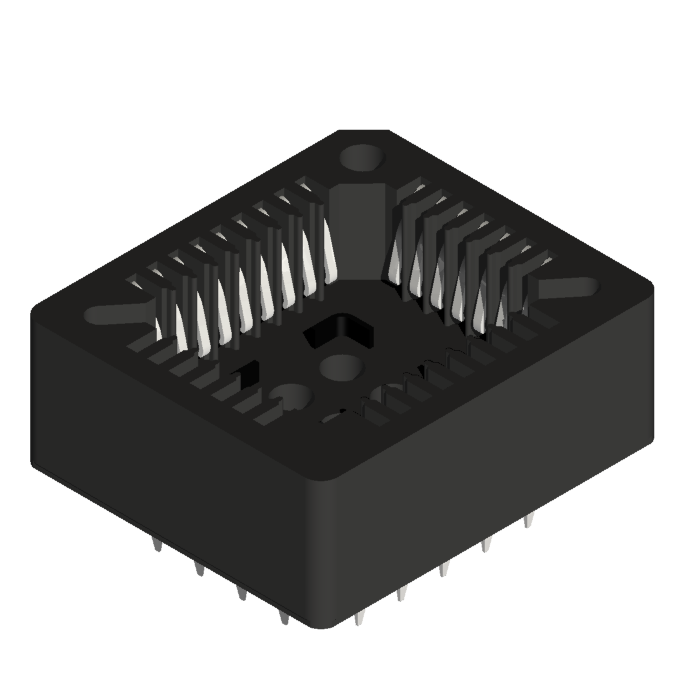

PLT-XXNXT

PLT-XXNXT

PLCC - CHIP CARRIER SOCKETS - THT

Datasheets:
PLT-XNX PLT-XNX.pdf

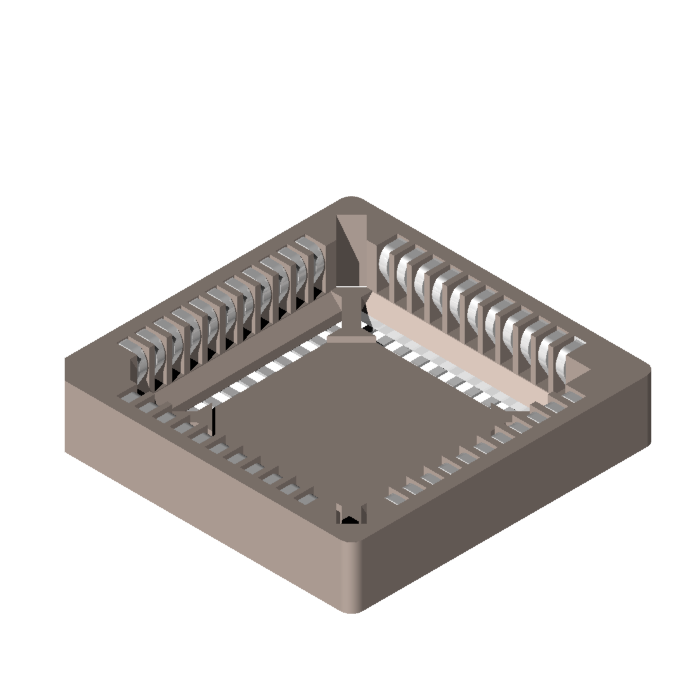

PLM-XXSPX

PLM-XXSPX

PLCC - CHIP CARRIER SOCKETS - SMT

Datasheets:
PLM-XSP PLM-XSP.pdf
